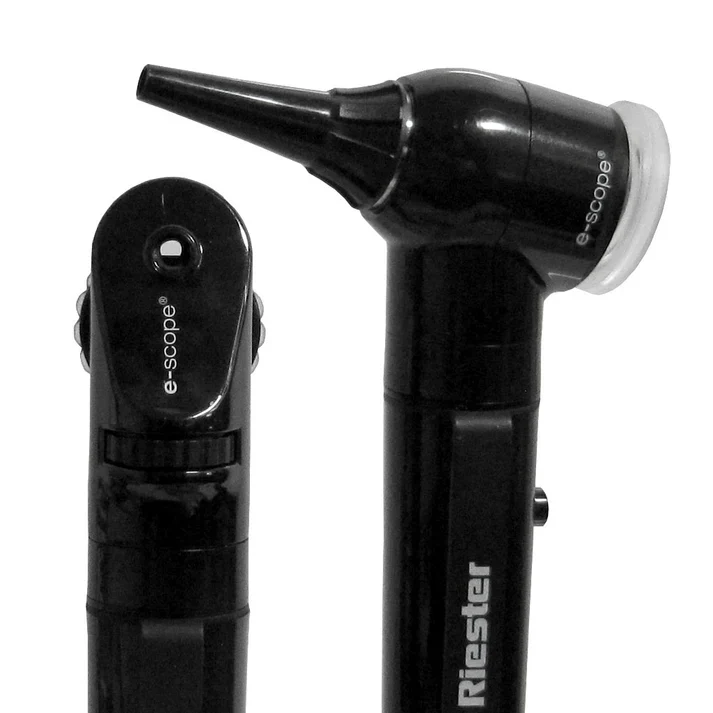

Riester e-scope® Otoscope/Direct Illumination Ophthalmoscope LED Diagnostic Set - Black

The set consists of:

• 1x e-scope® fibre optic LED pocket otoscope (includes AA battery handle).
• 1x e-scope® LED pocket ophthalmoscope (includes AA battery handle).
• 1x Hard carry case.
• 11x Disposable speculae (5 x 2.5mm and 6 x 4mm)
• 2 Year Warranty
• No batteries included

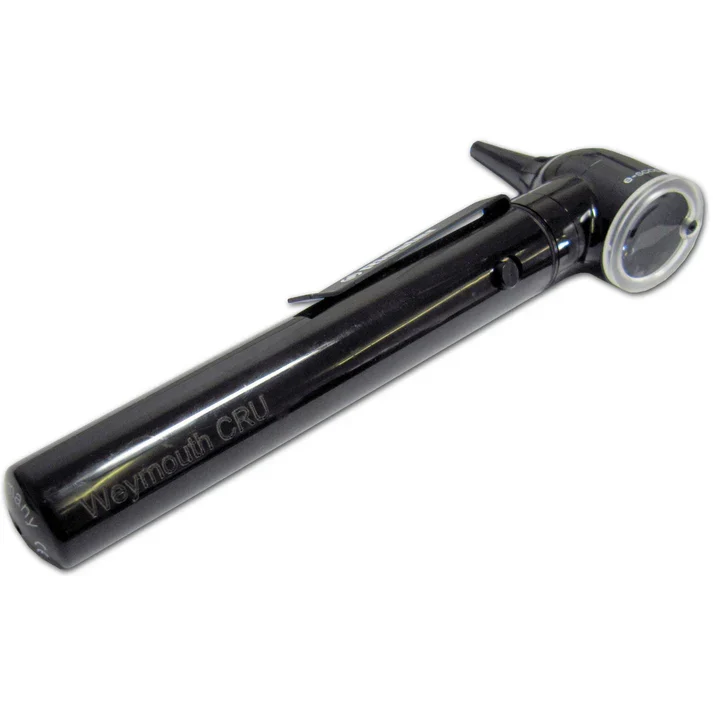

e-scope® F.O. LED Otoscope

• 3x magnification swivelling precision optics for optimum view.
• LED illumination gives 5500K pure white light for true tissue colour.
• Low power LED technology gives a practically unlimited service life.
• Fibre optics produce a ring of light for an unhindered, glare-free view.
• Sturdy ear speculum receptacle in hardwearing hygienic metal.
• Insufflation port for manipulation of the tympanic membrane (bulb not included)

Clear direct view
360° F.O. ring of light allows a completely unobstructed view.

Swivelling optics
Allows easy access for cleaning.

LED illumination
White light for true tissue colour compared to halogen bulbs.

e-scope® LED Ophthalmoscope

• LED illumination gives 5500K pure white light for true tissue colour.
• Low power LED technology gives a practically unlimited service life.
• Optimised high performance optics with aspherical condenser lens to reduce aberrations.
• 6 apertures:
  • Small - allows quick entry into small, undilated pupils.
  • Large - general examination of the eye through dilated pupil.
  • Fixation Star - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Semi Circle - for a combination of depth perception and field of view.
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
• 18 focusing lenses with a range of -20 to +20 diopters, adjustable via easy-to-reach maywheel.
• Soft brow-rest suitable for use with spectacles.
• Handle powered by 2 regular AA alkaline batteries (included)

Aperture Selection Disc
Switch easily between 6 apertures.

Six Apertures
A wide range of practical apertures to select from.

Daisywheel Focus
Easy access on either side of the head to adjust the diopters.
