Riester Ri-LED LED Diagnostic Set

The Ri-LED set is the first full LED battery operated set available in the Medisave range.

The set consists of:

• 1x ri-scope® L3 LED otoscope.
• 1x ri-scope® L2 LED ophthalmoscope.
• 1x rheotronic® Lithium battery powered handle
• 1x Hard carry case.
• 5x Re-usable speculae.
• 5x Disposable speculae.
• 1x Detachable otoscope operation lens.

10567 | ri-scope® LED Otoscope

• 3x magnification swivelling optical glass.
• LED illumination gives 5500K pure white light for true tissue colour.
• Low power LED technology gives a practically unlimited service life.
• Fibre optics produce a ring of light for an unhindered, glare-free view.
• Detachable operation lens with 4x magnification glass mini-optic for easy insertion of instruments.
• Specula ejector for hygienic touch-free disposal of used speculae.
• Insufflation port for manipulation of the tympanic membrane (bulb not included)
• Soft brow-rest suitable for use with spectacles.
• Variable illumination strength and auto-shutdown via the rheotronic® handle.

Clear direct view
360° ring of FO light allows a completely unobstructed view.

RheoTRONIC® Control
Smoothly vary the power of illumination.

LED illumination
White light for true tissue colour compared to halogen bulbs.

Specula Ejector
Press the button on the reverse of the head to eject specula.

Operation Lens
Detachable 4x magnification glass lens for easy instrument use.

10573-203 | ri-scope® LED Ophthalmoscope

• LED illumination gives 5500K pure white light for true tissue colour.
• Low power LED technology gives a practically unlimited service life.
• Optimised high performance optics with aspherical condenser lens to reduce aberrations.
• 6 apertures:
  • Small - allows quick entry into small, undilated pupils.
  • Medium- provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation Star - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Semi Circle - for a combination of depth perception and field of view.
• 3 filters can be used in conjunction with any of the above apertures:
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
  • Polarising filter - virtually eliminates corneal reflection.
• 29 focusing lenses with a range of -35 to +40 diopters, adjustable via easy-to-reach maywheel.
• Soft brow-rest suitable for use with spectacles.
• Variable illumination strength and auto-shutdown via the rheotronic® handle.

RheoTRONIC® Control
Smoothly vary the power of illumination.

Aperture Selection Disc
Switch easily between 6 apertures via the outer wheel of the selection disc.

Six Apertures
A wide range of practical apertures to select from.

Filter Selection Disc
Use the inner wheel of the selection disc to select a filter.

THREE Filters
Red-free, cobalt blue or polarising filter can be used in tandem with any aperture.

Daisywheel Focus
Easy access on either side of the head to adjust the diopters.

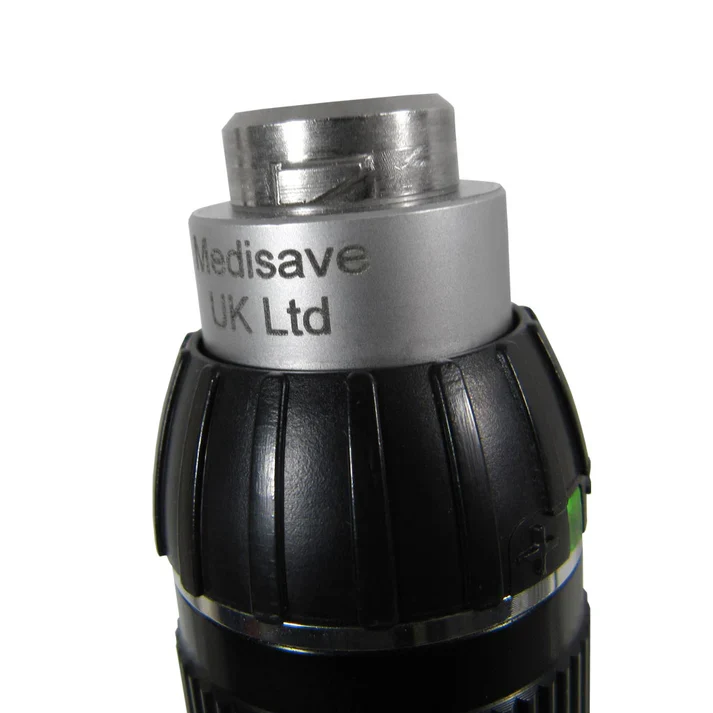

10630 | rheotronic® Handle for Lithium Batteries

• Patented electronic handle (rheotronic®) allows light output to be tailored to application.
• Quick-switch bayonet connection with sprung tension to keep heads secure.
• Diode signals whether handle is on or off.
• Automatic safety shutdown after 120s.
• Durable black chrome-plated metal handles.
• Automatic off function to increase battery longevity.
• Durable CR123A lithium batteries supplied with unit.
• 2 year warranty including LEDs

Easy Attachment
Align cutouts with lugs, press and twist 90° to fit. Reverse procedure to remove.

Rheotronic Control
Smoothly control the applied power by holding the easy grip dial either clockwise or anti-clockwise.

Lithium power
Powered by lithium batteries (included).

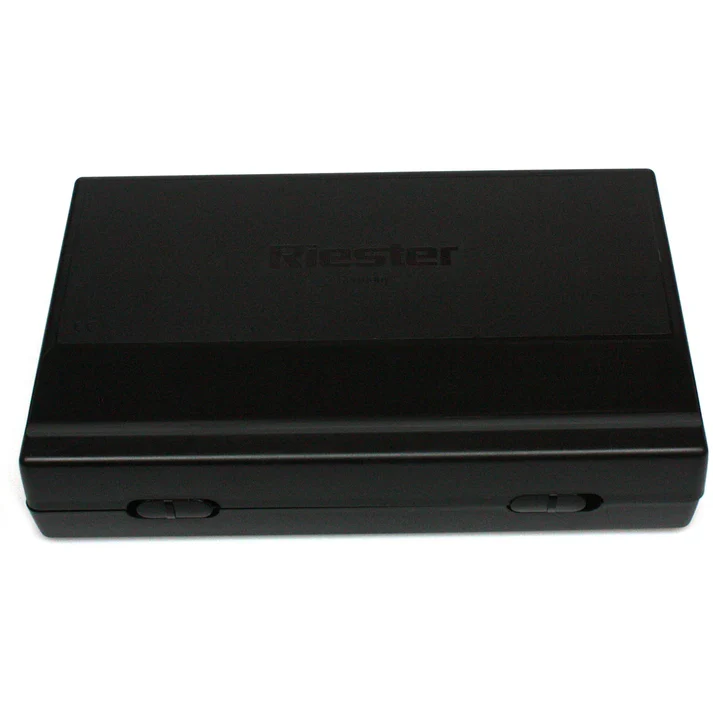

Hard Carry Case

• Deluxe hard ABS plasic
• Vacuum formed interior to keep instruments in place .
• Easy release safety catch.
